4.12 How to configure CEF logs

You can configure Scribbler to collect syslogs in Common Event Format (CEF) format.

Procedure

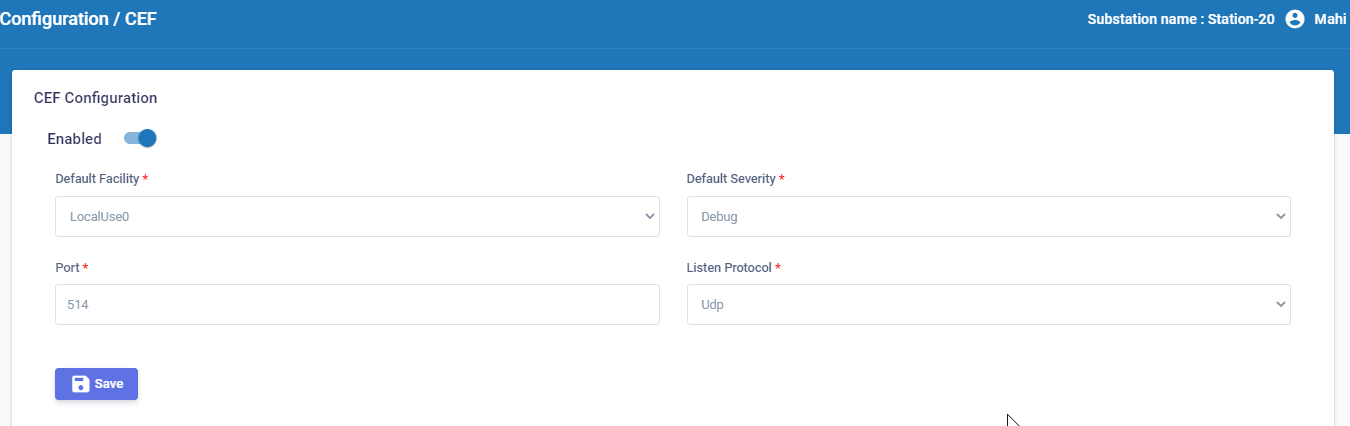

1. In the navigation pane, go to Configuration > CEF.



2. Enable Scribbler to collect CEF logs.

3. Select the Default Facility that will collect the logs.

4. Select the Default Severity level of the logs.

5. Specify the port that will receive the logs.

6. Select either UDP or TCP as the listening protocol.

7. If you select TCP, enter the message delimiter that should be used to identify separate syslog messages.

8. After you enter the values, click
