4.4 How to configure SNMP traps forward settings

You must configure Scribbler to forward the SNMP traps to a remote server.

Procedure

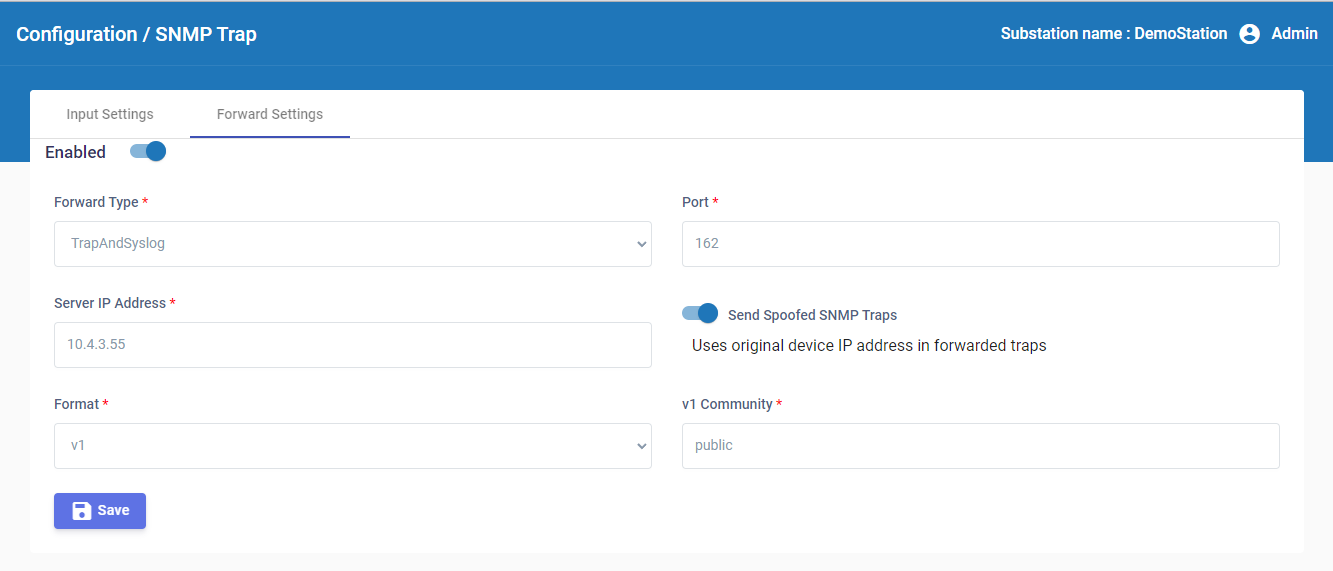

1. In the navigation pane, go to Configuration > SNMP Trap.



2. In the Forward Settings tab, enable Scribbler to forward SNMP traps.

3. Select the Forward Type as Trap, Syslog, or Trap and Syslog.

4. Specify the port number and the IP address of the remote server.

5. To forward the SNMP traps with original source address in the IP header, enable Send Spoofed SNMP Traps.

6. Select the format of the forwarded messages as either v1 or v2c.

7. Specify the community string that must be included with the SNMP traps.

8. Click
